| Model Name | RIC-1020D-120140 | RIC-1020DT-120160 | RIC-1020DT-120190 | RIC-1020DT-120250 | RIC-1020DT-120140(5P) | RIC-1020DT-120100(5P) | |
|---|---|---|---|---|---|---|---|
| Voltage | V | 12 | 12 | 12 | 12 | 12 | 12 |
| No-load speed | rpm | 14000 | 16000 | 19200 | 25800 | 14000 | 10000 |
| No-load current | mA | 9 | 9 | 15 | 25 | 8 | 5 |
| Rated speed | rpm | 10500 | 12600 | 15500 | 21500 | 11400 | 8540 |
| Rated current | mA | 115 | 155 | 180 | 230 | 120 | 44 |
| Rated torque | g.cm | 10 | 10 | 10 | 10 | 10 | 5 |
| Stall current | A | 0.45 | 0.65 | 0.83 | 1.6 | 0.8 | 0.3 |
| Stall torque | g.cm | 40 | 47 | 50 | 65 | 55 | 36 |

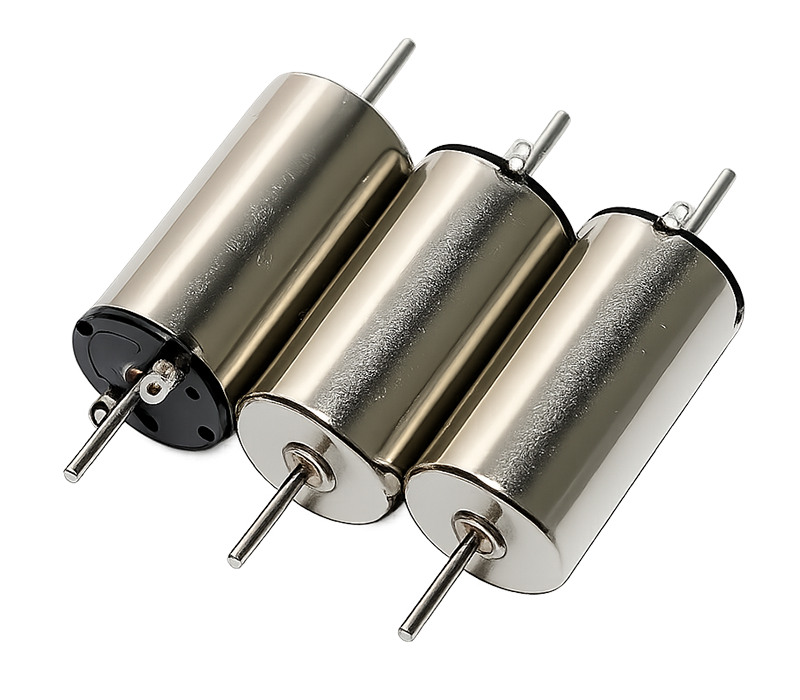

1020 Dual shaft Coreless motor RIC-1020DT
$5.00
Bulk Pricing
| Quantity | Price |
|---|---|
| 1+ | $12.00 |
| 10+ | $8.00 |
| 50+ | $6.00 |
| 100+ | $4.00 |
| For large orders, please contact us for a customized price. | |
