Name: 25mm high torque metal gear motor With encoder RIC-25GB2431
SKU: 1266
Availability: InStock

Voltage	Reduction Ratio	1/4.4	1/9.6	1/21.3	1/35.5	1/46.8	1/78	1/103	1/171	1/226	1/377	1/500
12V	No-load speed(rpm)	1364	625	282	169	128	77	58	35	27	16	12
	No-load current(A)	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05
	Rated speed(rpm)	1100	500	225	135	100	60	48	28	22	13	9.6
	Rated current(A)	0.35	0.35	0.35	0.35	0.35	0.35	0.35	0.35	0.35	0.35	0.35
	Rated torque(kg.cm)	0.12	0.3	0.5	1	1.2	1.6	2.2	2.8	5	7	9
24V	No-load speed(rpm)	1364	625	282	169	128	77	58	35	27	16	12
	No-load current(A)	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04
	Rated speed(rpm)	1100	500	225	135	100	60	48	28	22	13	9.6
	Rated current(A)	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15
	Rated torque(kg.cm)	0.15	0.3	0.6	1.2	1.3	1.6	2.5	3.2	6.5	8	9

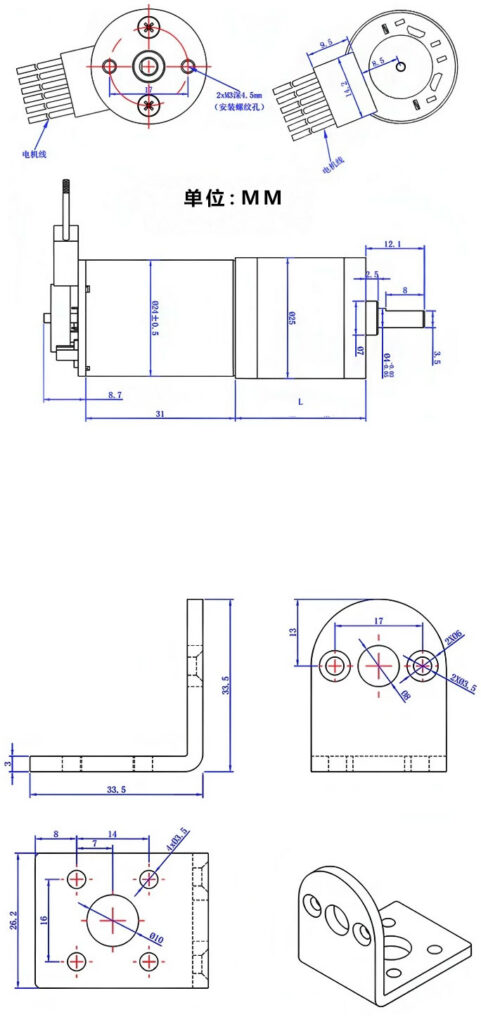

L(mm)		17	17	19	21	21	23	23	25	25	27	27
