| Model Name | RH-3151SD-2170 | RH-3151SD-15132 | RH-3151SD-3025 | RH-3175SD-2173 | RH-3175SD-3133 | |
|---|---|---|---|---|---|---|
| Voltage | V | 12 | 24 | 12 | 24 | 12 |
| No-load speed | rpm | 3600 | 3800 | 10690 | 3800 | 4300 |
| No-load current | A | 0.07 | 0.045 | 0.34 | 0.05 | 0.12 |
| Rated speed | rpm | 3050 | 3180 | 9133 | 3353 | 3802 |
| Rated current | A | 0.28 | 0.22 | 1.98 | 0.375 | 0.917 |
| Rated torque | g.cm | 100 | 110 | 168 | 203 | 217 |
| Output | W | 3.14 | 3.66 | 15.77 | 7.13 | 8.67 |
| Stall current | A | 2.08 | 1.12 | 11.59 | 2.81 | 7 |
| Stall torque | g.cm | 647 | 674 | 1153 | 1727 | 1881 |

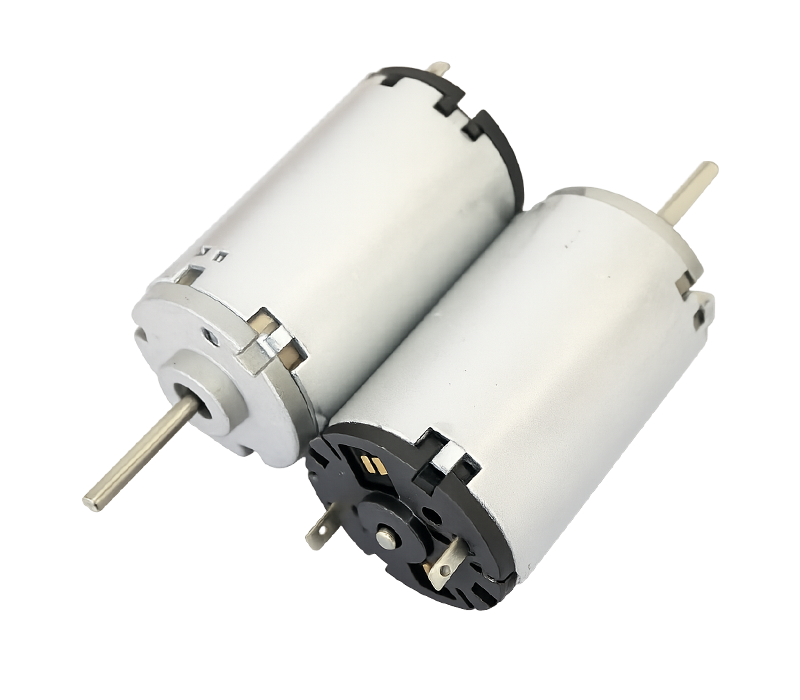

31mm carbon brushed micro dc motor Low noise RH-3153SD
$9.00
